In modern electronic device design, flexible circuit boards (FPCs) and connecting wires are important components for achieving circuit connections, but they have significant differences in structure, function, and application. This article will provide a detailed analysis of the differences between these two electronic components, helping engineers and electronics enthusiasts make more informed choices based on project requirements.
1、 Comparison of Basic Concepts
Flexible Printed Circuit (FPC)
Flexible circuit board is a printed circuit board made of flexible substrate (usually polyimide or polyester film), and conductive lines are formed on the flexible substrate through etching process. Flexible circuit boards
have the characteristics of ultra-thin, high-density, high reliability, and bending resistance. They are made of materials such as polyimide or polyester film and can be used for circuit connections in electronic products.
They are also one of the important materials for thin design of electronic productsIt has the characteristics
of being flexible and foldable, and can adapt to various complex three-dimensional installation spaces.
Connection line (usually refers to FFC or ordinary connection line)
Connecting wires are generally divided into two main types:
Flat flexible cable (FFC): composed of multiple parallel wires arranged in a flat strip shape, wrapped with insulation material on the outside.
Ordinary connecting wire: composed of independent insulated wires, may have connector terminals.
2、 Structural and Manufacturing Differences
Structural characteristics of flexible circuit boards
Multi layer structure design (may include cover layer, conductive layer, substrate, etc.)
Circuit patterns formed by precision etching
Can integrate electronic components (resistors, capacitors, chips, etc.)
Can achieve multi-layer interconnection
The surface usually has a protective coating
Structural characteristics of connecting wires
Simple conductor arrangement (parallel or twisted)
External unified insulation package
No built-in electronic components
Usually equipped with connectors at both ends
Relatively simple and fixed structure

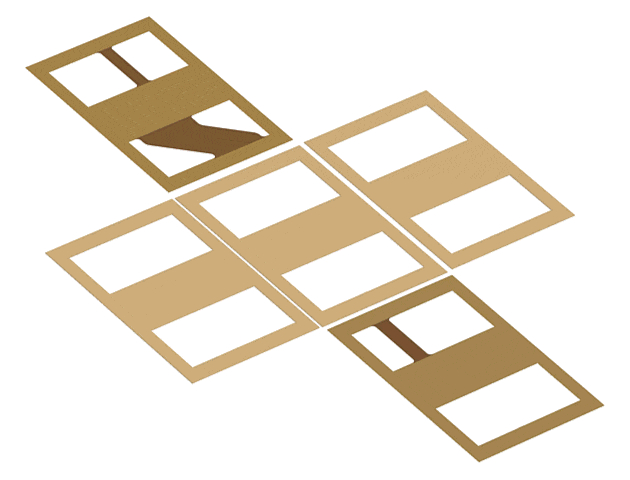

Flexible circuit boards
3、 Typical application scenarios
Advantages and Applications of Flexible Circuit Boards
Space limited devices: foldable smartphones, smartwatches, and other wearable devices
High density interconnection: camera module, high-resolution display screen
Dynamic bending environment: robotic arm joints, hard disk heads
High temperature environment: electronic devices inside the engine compartment of automobiles
High signal integrity requirements: high-frequency communication equipment, high-speed data transmission
Applicable scenarios for connecting wires
Device to device connection: printer head to motherboard connection
Simple signal transmission: simple internal circuit connection of household appliances
Low cost demand: ordinary connections in consumer electronics products
Temporary Connection: Testing and Prototype Development Phase
High current applications: Partial power connection scenarios
4、 Choose Suggestions
When choosing a flexible circuit board, consider:
Requires complex wiring or high-density interconnection; dynamic bending requirements of equipment; strict requirements for signal integrity;long term reliability is crucial;the space restrictions are extremely strict
When selecting a connecting cable, consider:
Simple and direct connection requirements
Limited budget; no need for frequent bending; relatively sufficient installation space; low requirements for signal quality
Flexible circuit board technology is developing towards higher density, higher frequency, and integrated functional components, while connecting wires are continuously improving in terms of enhancing durability
and simplifying installation processes. With the popularity of the Internet of Things and wearable devices, both technologies will play important roles in their respective areas of expertise.
