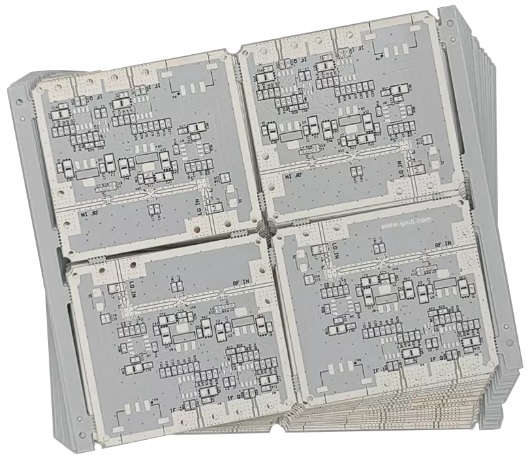

1. Introduction
In high-speed digital, RF, and microwave applications, PCB material choice is critical for signal integrity, thermal stability, and overall device reliability. While FR4 is cost-effective and widely used, its dielectric properties often limit performance in high-frequency designs due to higher loss tangent and unstable dielectric constants.
Rogers PCB materials, with their low Dk, low loss tangent (Df), high glass transition temperature (TG), and excellent thermal and mechanical stability, are widely recognized for addressing these challenges. Selecting the right Rogers material can significantly affect signal propagation, impedance control, and manufacturing yield.
This article provides a practical guide for engineers and designers on selecting and applying Rogers materials, with real-world considerations beyond the datasheet. It covers material parameters, design tips, hybrid stack-up strategies, simulation recommendations, and manufacturing notes.
2. Key Parameters of Rogers Materials
2.1 Dielectric Constant (Dk)
The dielectric constant (Dk) determines signal propagation speed and impedance characteristics. Stable Dk ensures consistent impedance and reduces reflections. Variations in Dk can cause skew between differential pairs, leading to eye-diagram closure or timing errors in high-speed digital circuits.
Typical Rogers materials have Dk values from 2.2 to 3.5, remaining stable across a broad frequency range.
Low Dk → Faster signal propagation
Stable Dk → Consistent impedance and reduced reflections
Example: USB 3.2 or PCIe Gen4 differential pairs rely on Dk stability for accurate impedance matching.
2.2 Loss Tangent (Df)
Df quantifies dielectric losses. Low Df is essential for high-frequency applications to reduce signal attenuation over long traces or in tightly coupled structures.
Examples:
Rogers RT/duroid 5880: Df ≈ 0.0009 @ 10 GHz
Rogers 4350B: Df ≈ 0.0037 @ 10 GHz
Engineering tip: Even small reductions in Df can make a measurable difference in insertion loss for RF modules, especially in mmWave or antenna feed networks.
2.3 Thermal Properties
High TG ensures material withstands soldering, lamination, and reflow without warping. CTE (coefficient of thermal expansion) compatibility with IC packages prevents stress cracking during thermal cycling.
For high-power RF amplifiers or dense HDI boards, a high TG material minimizes risk of delamination.
Consider multi-layer boards with embedded RF paths; poor thermal match can distort microvias or reduce via reliability.
2.4 Mechanical Properties
Rogers materials have low moisture absorption, high flexural strength, and excellent dimensional stability. This is crucial for:
HDI designs with blind/buried vias
Thin boards (<0.5mm) that need to maintain flatness
Microvias in high-layer-count PCBs
Practical note: Handling precautions and proper lamination parameters are essential, especially for thin Rogers boards, as they are less forgiving than FR4 during manufacturing.
2.5 Manufacturability
Rogers materials support precise drilling, lamination, and surface finishes (ENIG, OSP). They are compatible with multilayer designs, suitable for complex stack-ups.
Multi-layer impedance control requires accurate layer-to-layer registration.
Consider drill aspect ratios for microvias; excessive drilling stress can cause cracks.
Surface finish compatibility: immersion gold is often preferred for RF to maintain low contact resistance.
3. FR4 vs. Rogers: Practical Considerations
FR4 is cost-effective and widely used but exhibits higher Df and variable Dk at high frequencies. In practice:
Long differential pairs may experience signal loss or timing skew.
RF paths in antennas, filters, or mmWave modules may suffer insertion loss and reflections.
Designers often start with FR4 prototypes, but switch to Rogers when simulations show performance degradation.
Engineering insight: FR4 is not “bad,” but its performance limits shrink design margins in high-speed or RF circuits.
4. Common Rogers Materials and Their Applications
Rogers 4003C
Balanced Dk (~3.38) and low Df
Easier processing than ultra-low-loss materials
Good for 2–6 GHz RF and high-speed digital interfaces
Rogers 4350B
Lower Df (~0.0037), stable Dk
Cost-effective for RF-critical paths and differential signals
RT/duroid 5880
Ultra-low Df (~0.0009) for very high-frequency (>10 GHz)
Higher cost, more stringent lamination conditions
Practical tip: Choose material according to the critical signal path, not the entire board. Use higher-end Rogers only where performance is needed.
5. Hybrid Stack-Up: Cost-Performance Balance
All-Rogers boards are expensive. Hybrid stack-ups reduce cost while maintaining key signal performance.
Example for a 4-layer board:
Top: RF critical signals → Rogers
Inner 2: Ground → FR4 or Rogers
Inner 3: Power → FR4
Bottom: Non-critical signals → FR4
Tips:
Keep high-speed paths on Rogers layers to minimize insertion loss.
Ensure return paths and ground planes are continuous.
Hybrid designs can reduce material costs 30–50% while keeping performance predictable.
6. Stack-Up and Design Considerations
Even with the right material, poor stack-up can degrade performance:
Impedance continuity is critical for high-speed digital and RF lines.
Return current paths must follow signal paths closely.
Avoid unnecessary layer transitions on critical traces.
Rule of thumb: Material sets the performance ceiling; stack-up and routing determine whether you reach it.
7. Practical Material Selection Process
Define Frequency and Signal Requirements
<1 GHz → FR4 often sufficient
1–6 GHz → Rogers 4003C or 4350B
6 GHz → RT/duroid 5880
Check Loss and Impedance Sensitivity
Evaluate Df, Dk, and differential pair requirements
Simulate using EDA/TDR for expected lengths and data rates
Select Material
4003C: balanced and versatile
4350B: low-loss, cost-effective
5880: microwave/high-frequency
Optimize Stack-Up
Place Rogers only on critical signal layers
Use FR4 for non-critical layers to save cost
Simulate and Verify
Perform SI/PI analysis, TDR, and VNA measurements
Check differential impedance, eye-diagrams, insertion loss
8. Manufacturing Notes
Compared to FR4, Rogers materials are more sensitive to processing:
Lamination temperature and pressure require tighter control
CTE mismatch with copper or vias can lead to warping or cracks
Drilling and metallization require high precision
Engineering advice: Early consultation with the manufacturer helps avoid costly rework and ensures batch-to-batch consistency.
9. Common Pitfalls
Issue Possible Cause Solution
Signal attenuation high High Df or long traces Select lower Df material, optimize trace width/length
Impedance mismatch Incorrect Dk or stack-up Adjust stack-up, trace height/thickness
Board warping/delamination Poor lamination or CTE mismatch Control lamination parameters, choose suitable TG
EMI/EMC issues Long parallel traces, poor ground Optimize layout, add ground planes, filters
10. Conclusion
Rogers PCB materials are essential for high-speed digital, RF, and microwave applications. Practical selection balances:
Electrical properties: Dk, Df, impedance
Thermal performance: TG, CTE, heat resistance
Mechanical and processing properties: Flexural strength, microvia compatibility, lamination precision
Simulation, stack-up optimization, and early consultation with manufacturers are key to achieving high-performance, reliable, and cost-effective PCBs.
Final tip: Always start with the critical paths, select Rogers for them, and consider hybrid stack-ups to reduce cost without compromising signal performance.
