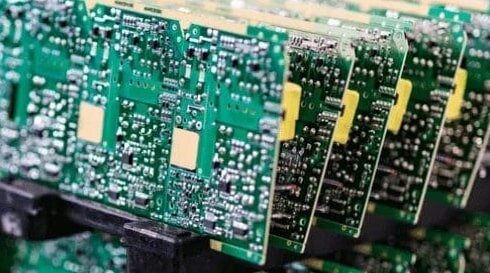

SMT pcb board refers to the application of Surface Mount Technology (SMT) to printed circuit boards. SMT is an electronic assembly technology that directly mounts electronic components onto the PCB surface and solders them using methods such as reflow soldering. Compared to traditional Through-Hole Technology (THT), SMT eliminates the need for drilling holes in the circuit board, significantly improving production efficiency and saving space.
Advantages of SMT Technology
High Integration: SMT technology allows for direct mounting of electronic components onto the circuit board surface, resulting in higher integration. This means more components can be placed in a smaller space, enabling more complex circuit designs.
Small Size: SMT technology requires a smaller circuit board size than traditional THD technology because there are no pins that need to penetrate the circuit board, allowing for a smaller board size.
High Reliability: smt pcb board utilize advanced soldering technology, enabling automated soldering of components that cannot be soldered manually, greatly improving production efficiency and quality.
High Production Efficiency: SMT (Surface Mount Technology) assembly technology enables automated production, significantly improving efficiency. During the assembly process, the pick-and-place machine automatically handles component placement and positioning, eliminating the time and cost of manual operation.
smt

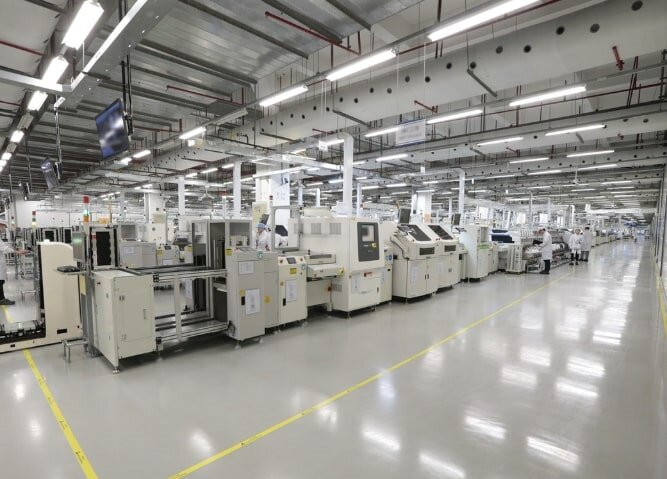

Main SMT Assembly Process: A complete SMT production process typically includes the following key steps:
1. Solder Paste Printing: Fully automated solder paste printers precisely print solder paste onto the PCB pads using a stencil. SPI (Stencil Injection Processing) performs a comprehensive inspection of the printed solder paste, including thickness, area, and volume, to confirm compliance.
2. Component Placement: This is the most crucial step in SMT production. High-speed pick-and-place machines precisely place various electronic components (such as resistors, capacitors, and IC chips) into their corresponding positions on the PCB.
Modern pick-and-place machines can reach speeds of hundreds of thousands of points per hour, with placement accuracy controlled within ±0.05mm.
3. Reflow Soldering: The PCB board with components then enters the reflow oven. During reflow soldering, the solder paste melts upon heating and forms a strong metallic bond with the component leads and pads, thus achieving electrical conductivity and mechanical fixation.
4. Inspection and Rework After soldering, AOI (Automated Optical Inspection) equipment is used to check for good solder joints, component misalignment, missing components, or cold solder joints. For any defective boards found, technicians will manually rework them to ensure product quality meets standards.
5. Cleaning and Conformal Coating Some high-reliability products (such as automotive electronics and medical devices) undergo cleaning after soldering to remove flux residue. Subsequently, a conformal coating (moisture-proof, dust-proof, and corrosion-proof) may be applied to improve environmental adaptability.
smt pcb board
Applications of smt pcb board
SMT pcb board are widely used in various electronic products, primarily in:
Consumer Electronics: Used in smartphones, tablets, televisions, smartwatches, etc., meeting the requirements for miniaturization and high performance.
Computer and Communication Equipment: Used in motherboards, routers, servers, 5G communication modules, etc., ensuring high-speed signal transmission and stable operation.
Automotive Electronics: Used in control systems, in-vehicle entertainment, and sensors, requiring high reliability and shock resistance.
Industrial Control: Applied to automated equipment, CNC machine tools, robots, etc., capable of stable operation in complex environments.
Medical Equipment: Used in ECG monitors, ventilators, CT scanners, etc., requiring high precision and safety.
Military and Aerospace: Used in navigation, radar, and control systems, requiring high reliability and environmental resistance.
SMT pcb boardare the core foundation of modern electronics manufacturing. They not only drive the lightweighting and intelligent development of electronic products but also play a crucial role in the global industrial chain. With the booming development of emerging industries such as 5G, artificial intelligence, the Internet of Things, and new energy vehicles, smt pcb board technology will continue to deepen and innovate, moving towards higher precision and greater intelligence.
