As a key design element, countersink hole has become an indispensable technology in high-density interconnect boards (HDI) and precision electronic devices by optimizing spatial layout and mechanical stability.
Definition and core functions of countersink hole
Basic definition
Countersink hole is a conical or stepped hole formed in PCB laminate by mechanical or laser drilling process, and its top is enlarged to accommodate the head of flat head screw so that it is flush with the PCB surface. According to different angles, it can be divided into standard types such as 82° and 90°, and special angles can also be customized according to customer needs.
Core function
Mechanical fixation and space optimization
Countersink hole ensures that the screw head is fully embedded in the PCB surface to avoid protrusions affecting the overall thickness, especially suitable for space-constrained scenarios such as smartphones and wearable devices. For example, the camera module of iPhone 12 Pro Max is fixed by countersink hole, which not only ensures the stability of the structure but also maintains a simple appearance.
Signal integrity and electrical performance
In high-density interconnect (HDI) boards, countersink holes can be hidden in the inner layer to reduce interference in the signal transmission path and improve the signal integrity of high-frequency circuits. For example, the touch screen of the ASUS ZenBook Pro Duo is connected to the motherboard through a countersink hole to achieve a seamless touch experience.
Manufacturing efficiency and cost control
Compared with through-holes, countersink holes reduce material waste through local drilling processes, especially in multi-layer boards, which can optimize inter-layer connection efficiency and reduce overall manufacturing costs.
Design specifications and key parameters
Aperture and depth design
Aperture matching: It needs to be customized according to the screw size. For example, the M2 screw needs a hole diameter of 2.2mm and a depth of 1.5mm to ensure that the head is fully embedded.
Angle control: The standard angle is 82° or 90°, and the angle deviation needs to be controlled within ±2° to ensure the fit between the screw and the hole wall.
Plating requirements: If the hole needs to be conductive, the plating thickness (usually ≥25μm) must be specified to avoid electrical failures caused by grounding problems in unplated holes.
Spacing and position specifications
Hole spacing: The spacing between adjacent countersink holes should be ≥2 times the hole diameter to avoid short circuits caused by machining errors.
Edge distance: The distance from the hole to the edge of the circuit or pad must be ≥0.25mm to prevent drilling deviation from damaging the circuit.
Industry standards and compliance
IPC-2221 specification: The structural strength of the countersink hole is required to meet the mechanical stress test, such as no cracks on the hole wall after the screw is tightened.
Material compatibility: The drilling parameters need to be adjusted according to the PCB substrate (such as FR4, ceramic) to avoid high temperature causing laminate delamination.

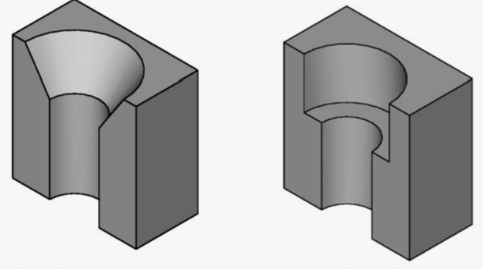

countersink hole
Manufacturing process and quality control
Drilling process selection
Mechanical drilling: Suitable for large apertures (≥0.5mm), low cost but limited accuracy, and needs to be fixed by a fixture to prevent deviation.
Laser drilling: The accuracy can reach ±0.01mm, suitable for micro holes (<0.3mm), but the cost is higher, suitable for HDI boards and high-frequency circuits.
Processing steps
Guide hole drilling: Drill a small diameter guide hole first to ensure position accuracy.
Countersink expansion: Use a special countersink drill to expand the top to form a conical or stepped structure.
Deburring and cleaning: Remove burrs on the hole wall by chemical or mechanical means to avoid the risk of short circuit.
Plating and inspection: Electroless copper plating is performed on the conductive holes, and the hole diameter and angle are verified by AOI (automatic optical inspection).
Common problems and solutions
Hole wall cracks: Caused by excessive drilling speed or material brittleness, the feed rate needs to be optimized and a flexible substrate needs to be selected.
Uneven plating: Ensure uniform coverage of the hole wall copper layer by adjusting the plating solution concentration and current density.
Application scenarios and case analysis
Consumer electronics field
Smartphones: The camera module of the iPhone 12 Pro Max is fixed with a countersink hole, which ensures a stable structure and a simple appearance.
Laptops: The touch screen of the Asus ZenBook Pro Duo is connected to the motherboard through a countersink hole to achieve a seamless touch experience.
Automotive electronics field
Body parts: The battery pack fixing bracket of the Tesla Model 3 uses a countersink hole to improve mechanical stability and vibration resistance.
Sensor installation: The millimeter-wave radar module is embedded in the PCB through the countersink hole to reduce signal interference.
Aerospace field
Satellite circuit board: The high-density interconnect board (HDI) combines the countersink hole with the blind hole to achieve circuit connection of more than 10 layers, reduce weight and optimize the signal path.
Future trends and technology prospects
HDI board and any-layer hole technology
Any-layer hole: Any inter-layer connection is achieved through laser drilling. For example, the 4-layer 2-order hole can connect the 1-2 layer and the 3-4 layer, which improves design flexibility.
Stacking hole process: Overlapping the same network hole to form a larger through hole. For example, the 1-3-layer stacking hole can reduce the signal delay between layers.
Process innovation and material upgrade
Nano-scale drilling: Sub-micron aperture is achieved by plasma etching technology, which is suitable for quantum computing and 5G/6G high-frequency circuits.
Flexible countersink hole: Apply elastic materials in flexible PCBs to realize the countersink design of bendable devices.
Intelligence and automation
AI-driven design: Optimize the aperture and position through machine learning to reduce the cost of manual trial and error.
Real-time quality monitoring: integrated sensors and big data analysis to achieve real-time feedback and adjustment of the drilling process.
As the combination of precision manufacturing and high-density design, PCB countersink hole has become a key technology to promote the miniaturization and high performance of electronic equipment by optimizing spatial layout and mechanical stability. From smartphones to aerospace, its application scenarios are constantly expanding, and process innovations such as laser drilling and arbitrary-order holes are leading the industry to develop in a more efficient and intelligent direction. In the future, with the integration of materials science and AI technology, countersink hole will demonstrate its irreplaceable value in more cutting-edge fields.
