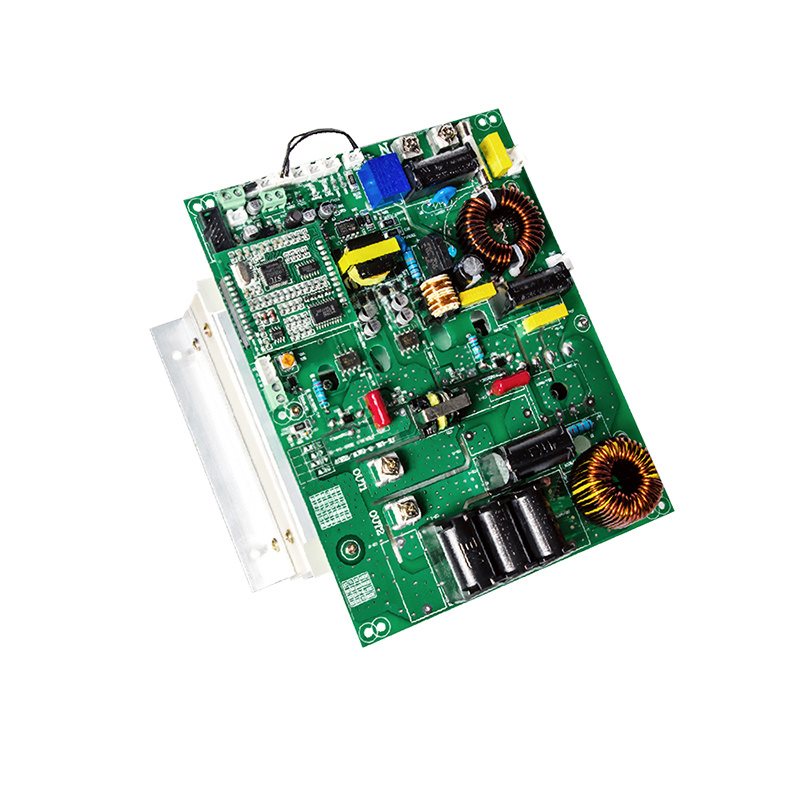

A heater circuit board is the electronic control unit that switches, monitors and protects a heating device, from a small space heater to an electric water heater or a heated car seat. In some products the board goes further and acts as the heating element itself, which makes the PCB heater a separate design problem. This guide explains both uses, the parts and materials that matter, and what to check before you order boards for a heating product.
Heating products look simple from the outside. You press a button, the element warms up, and a thermostat keeps the temperature steady. Behind that is a heater control board that reads a temperature sensor, decides when to switch power, and cuts everything off if something goes wrong. Because the load is high current and the product often runs unattended for hours, the board needs more care than a typical low-power electronic design.
The second use is less obvious. A PCB heating element is a board where the copper traces themselves produce heat, in the same way a wire in a toaster does. You see this in small de-icing plates, heated sensor windows, medical warming pads and battery heaters. For these, an aluminum PCB for heaters is often chosen because it spreads heat evenly and carries it away from sensitive parts. The two uses share some manufacturing concerns, but their design rules are quite different, so it helps to treat them separately.
What a Heater Control Board Does
The control board for a heating product has four main jobs.
First, it senses temperature. Most designs use an NTC thermistor, a small sensor whose resistance falls as it warms. Thermocouples and digital sensors appear in more demanding products. The board reads the signal, converts it and compares it with the set point.
Second, it switches the load. The heating element is usually a resistive load, which is easy to drive but draws a large current when it starts. Designers choose between mechanical relays, triacs and solid-state relays. Relays are cheap and tolerate surges, but they are noisy and wear out. Triacs and solid-state devices switch silently and last longer, though they get hot and need proper heat sinking. For triac control, zero-crossing switching, which turns the load on near the point where the mains voltage crosses zero, reduces electrical noise and stress.
Third, it protects the product. Typical protections include an over-temperature cut-out, a thermal fuse, a tip-over switch on portable heaters, and overcurrent protection. A well-designed board does not rely on software alone. A hardware cut-out, independent of the microcontroller, is the usual safety approach, because software can hang.
Fourth, it talks to the user. This may be a simple knob and an indicator light, or a display, touch panel, remote control or Wi-Fi module on a smart heater.
Main Product Categories
Space heaters and fan heaters use a control board with relays or triacs, a tip-over switch and often a fan motor control. Cost matters a great deal, so many of these boards are single-sided or simple double-sided designs.Electric water heaters need boards that handle higher currents and sometimes three-phase loads, and they must resist moisture because condensation is common near the tank.Vehicle heating, such as seat heaters, steering wheel heaters and PTC cabin heaters, runs at low-voltage DC but at large currents, which calls for heavy copper and sturdy connectors. Vibration and wide temperature swings add to the requirements.Industrial and laboratory heaters, such as process heaters and incubators, often use precise temperature regulation with PID control and may need isolated sensor inputs and communication ports.Heated wearables and small appliances use battery-powered boards with low-voltage heating elements, where efficiency and safe battery management are the main issues.
Design Points That Decide Reliability
Copper thickness and trace width. Heating loads draw serious current, and traces that are too narrow become heaters themselves. Standard 1 oz copper is often not enough, and 2 oz or heavier is common on the power path. Calculate trace width from the current and the allowed temperature rise, using an accepted reference such as the IPC current-carrying charts, and leave a safety margin. Copper pours and thermal relief around heavy pads help both current capacity and soldering.
Spacing and isolation. A heater circuit board on mains power must keep adequate creepage and clearance between live parts, and between the high-voltage side and the user-accessible low-voltage side. Slots cut in the board increase the surface path in tight spaces. The right distances depend on voltage, pollution degree and the product safety standard, so confirm them against the standard that applies to your market.
Heat management. Relays, triacs and power resistors generate heat. Place them away from electrolytic capacitors, since heat is the main enemy of capacitor life. Use copper area, thermal vias and, when needed, a heat sink. If the board sits right next to a heating element, consider that the board itself will run warm and select materials accordingly.
Noise control. Switching high currents produces electromagnetic interference, and the temperature sensor signal is small and easy to disturb. Keep sensor traces short and away from the switching path, use a clean ground reference, and add filtering where the sensor connects.
Connectors and wiring. Heaters use thick wires, and the terminals take mechanical stress during assembly and service. Use through-hole terminals with generous pads, and avoid putting the full pulling force on solder joints.
Choosing Materials
Base material. Standard FR-4 works for many heater boards, but if the board runs hot, a higher glass transition grade, such as TG150 or TG170, keeps its strength better. Low-cost appliances often use CEM-1 or CEM-3, which are cheaper but offer less hole reliability and lower strength, so they suit simpler, lower-power designs.
Aluminum-core boards. For LED heaters, battery heaters and PCB heating elements, a metal-core board carries heat from the copper layer through a thin dielectric into the aluminum base. Thermal conductivity of the dielectric layer is the key figure, along with its breakdown voltage. Aluminum boards are normally single-sided, which limits routing, so plan the layout around that.
Flexible heaters. Polyimide film can carry a copper heating trace in thin, bendable form. These heaters wrap around curved surfaces and warm up quickly, and are used in medical devices, sensors and aerospace equipment. Temperature rating of the adhesive and cover layer determines the maximum operating temperature.
Flame rating. Most heating products must use laminate with a UL 94V-0 rating. Ask the supplier for material certificates, and make sure the board marking matches your documentation.
Surface finish. Lead-free HASL is economical and common on appliance boards. ENIG gives a flatter surface and good shelf life. OSP is cheap but should be checked against your assembly process and storage time.
Designing a PCB Heating Element
When copper traces serve as the heater, the logic is the reverse of a control board: you want resistance, and you want the heat spread evenly.
The resistance of a trace depends on its length, width, thickness and the resistivity of copper. A long, thin, serpentine trace gives a higher resistance and therefore more heat for a given current. Power is current squared times resistance, or voltage squared divided by resistance, so the target voltage and wattage fix the resistance you need, and the trace geometry follows from that.
A few cautions apply. Copper resistance rises with temperature, so the power output changes as the board warms. Hot spots form wherever the trace narrows or bends sharply, so keep corners rounded and the width consistent. Power density, meaning watts per unit area, must stay within what the laminate can tolerate over its lifetime. And a temperature sensor placed on the board allows closed-loop control, which is safer than running open loop.
Because trace thickness affects resistance directly, ask the fabricator about copper thickness tolerance and etching variation. A small difference in width or thickness can shift the resistance enough to change the heater power noticeably. For tight resistance requirements, specify a tolerance and request resistance testing.
Protection Against Moisture and Dust
Many heating products work in damp conditions: bathrooms, outdoor equipment, water tanks and vehicles. Condensation between closely spaced conductors can cause leakage or corrosion. Conformal coating, a thin acrylic or silicone layer applied after assembly, protects against this. Tell your supplier early which areas must stay uncoated, such as connectors, switches and test points, since masking is part of the process.
Cleanliness before coating also matters. Flux residue under a coating can trap moisture, so confirm the cleaning process.
Safety and Compliance
Because a heater circuit board is part of mains-powered equipment that produces heat, compliance is central. Typical requirements include recognized flame-rated laminate, correct spacing, protection against overheating and compliance with environmental rules such as RoHS. Different regions have their own approvals, and the board is just one part of the product certification. Tell the fabricator which standards the final product must meet so that the right materials and markings are used from the beginning.
Manufacturing and Assembly Notes
Heating products tend to be high-volume and price-sensitive, so panel utilization has a direct effect on cost. Share the board outline early and discuss V-cut or tab routing.
Most boards mix surface-mount parts with through-hole relays, terminals, transformers and capacitors. Reflow handles the small parts, and wave or selective soldering handles the heavy ones. Heavy components should be placed so they do not conflict with the wave, and large pads may need extra preheat to avoid cold joints.
Testing should go beyond visual inspection. Functional testing with the board powered and loaded finds problems that cameras miss. For safety-critical products, add insulation and high-voltage testing where the design requires it, and consider thermal cycling on samples from a new design.
Common Problems and How to Avoid Them
Cracked solder joints at relays and terminals, caused by weight and thermal cycling. Larger pads and correct hole sizes help.Burnt or discolored traces, caused by too little copper or poor heat spreading.Corrosion and leakage in humid environments, caused by missing coating or flux residue.Early capacitor failure, caused by heat from nearby parts.Drift in heater power on PCB heating elements, caused by variation in copper thickness or width.Most of these show up in a design review, so ask your supplier to check manufacturability before production starts.
What to Send for an Accurate Quote
Send the Gerber files or ODB++ data, the bill of materials, the assembly drawing, the stack-up and copper thickness, the base material and flame rating, the surface finish, any coating requirements, the resistance tolerance for heating traces, certification needs, test requirements and the expected quantity. If you are replacing an existing board, include clear photos or a sample.
If you are unsure about copper weight, material choice or spacing, say so. A short engineering review often finds savings, such as using a simpler laminate for a low-power board.
Final Thoughts
A good heating product feels simple to the user: set a temperature, and it holds. Reliability comes from details that the user never sees, such as adequate copper, safe spacing, the right laminate and sound soldering. If you are developing a new design or sourcing a replacement heater circuit board, send your files and requirements to our team for a review and quotation.
