  • Optical Module Printed Circuit Board

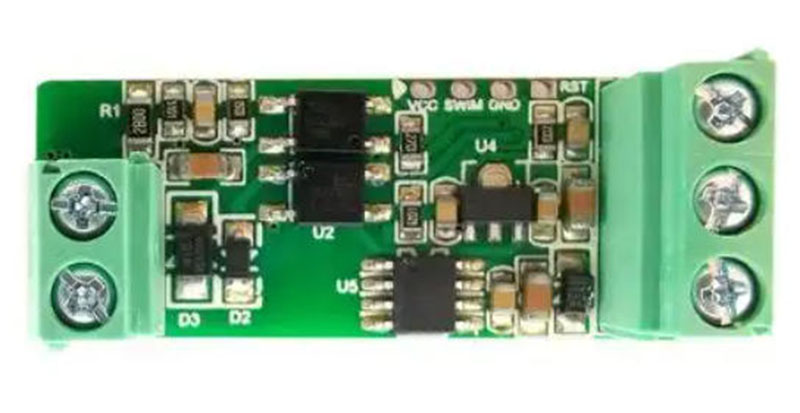

    Optical Module Printed Circuit Board

    Model: Optical Module Printed Circuit Board (PCB)


    Layers: 6 to 16 layers


    Materials: TG170, FR4, Polyimide, ITEQ IT968TC, Shengyi S1000-2M


    Structure: 2+4+2 High-Density Interconnect (HDI) PCB


    Final Thickness: 0.4 to 1.0 mm


    Copper Thickness: 1 to 2 ounces (OZ)


    Color Options: Green or White


    Surface Finish: Electroplated Hard Gold


    Special Feature: Beveled Gold Fingers


    Minimum Trace/Space: 3 mils / 3 mils


    Applications: Utilized in communication equipment, data centers, high-performance computing (HPC), and artificial intelligence (AI) to meet high-speed data transmission and computational power requirements.


    Product Description Technical Datasheet

    Optical module printed circuit boards serve as the pivotal platform for achieving electro-optical signal conversion, occupying a crucial position within high-speed communications and data centre domains. Accompanying the rapid advancement of information technology, data transmission speeds and volumes have grown exponentially, imposing exceptionally stringent demands upon optical module PCBs. Their design must not only meet the rigorous standards of high-speed data transmission but also ingeniously address a series of unique and complex challenges, such as thermal management and signal integrity, thereby ensuring the stable and efficient operation of the entire communications system.


    Optical Link Modules: The Magical Link in Electro-Optical Conversion

    So, what exactly is an optical link module? Simply put, it is a precision device capable of converting electrical signals into optical signals and vice versa. At the transmission end of a communication system, it acts like a skilled magician, deftly transforming faint electrical signals into robust optical signals. These optical signals are then swiftly and accurately transmitted over long distances via the wondrous information conduit that is optical fibre. Upon reaching the receiving end, the optical module performs its magic once more, reconverting the light signals back into electrical signals. This enables subsequent devices to accurately recognise and process the information. This remarkable conversion process resembles a brilliant dialogue spanning the distinct realms of electricity and light, allowing information to traverse freely and communicate seamlessly between diverse devices.


    Optical Modules: The Crucial Bridge for Interconnecting Devices

    With their formidable capabilities, optical modules serve as the vital bridge enabling seamless connectivity and efficient collaboration among diverse devices. Within the vast networked world, routers, switches, servers, and storage devices are scattered like stars across different corners. Each performs distinct tasks yet remains interdependent and closely coordinated. Optical modules function as invisible yet resilient bonds, tightly linking these devices to facilitate smooth information exchange and resource sharing. Whether within the internal networks of large enterprises, across geographically dispersed wide area networks, or within data centres handling vast volumes of data, optical modules provide indispensable support. Consequently, their applications are exceptionally broad, spanning virtually every layer of the communications domain.


    Optical Module Products: Diverse Types for Diverse Needs

    Optical modules form a vast family, with numerous product types available. Based on different packaging formats, they can be categorised into SFP, SFP+, QSFP+, and other variants. Each type possesses unique characteristics and advantages, catering to specific application scenarios.


    SFP Optical Modules: Compact, Flexible All-Rounders

    SFP optical modules stand out for their compact design. Their diminutive form factor facilitates effortless deployment and replacement within equipment, making them ideal for space-constrained environments. In terms of transmission rates, SFP modules support multiple speeds including 1Gbps, 2Gbps, 4Gbps, with some high-end models reaching up to 4.25Gbps, catering to diverse network speed requirements. Furthermore, they feature hot-swappable functionality, allowing modules to be inserted or removed without powering down the equipment during operation. This significantly simplifies network maintenance and upgrades, enhancing network availability and flexibility. Simultaneously, SFP optical modules support multiple fibre types, including single-mode and multi-mode fibres. This allows flexible selection based on transmission distance and cost requirements, offering users greater choice.


    SFP+ Optical Modules: The Exemplar of High-Speed Compatibility

    SFP+ optical modules excel in high-speed transmission, supporting data transfer rates up to 10Gbps to effortlessly meet the demands of high-speed networks. Compared to SFP modules, SFP+ modules offer superior compatibility and are interchangeable with SFP modules. This means that when upgrading network equipment, there is no need to replace all optical modules; simply swapping some SFP modules for SFP+ modules can enhance network speed, significantly reducing upgrade costs. Furthermore, SFP+ modules feature low power consumption, effectively reducing overall network equipment energy usage and aligning with contemporary energy-saving and environmental protection trends. While comparable in size to SFP modules, they deliver superior performance, enabling high-capacity transmission within constrained spaces.


    SFP28 Optical Modules: The Preferred Choice for Ultra-High-Speed, High-Density Upgrades

    The SFP28 optical module represents an upgraded iteration of the SFP+ module, achieving a qualitative leap in transmission rates. Supporting data transfer speeds of 25Gbps, it meets the ever-increasing demands for high-speed data transmission. Its smaller form factor allows for the installation of more optical modules within the same equipment space, thereby enhancing port density and enabling greater connectivity within limited areas. Furthermore, SFP28 modules maintain excellent compatibility with SFP+ modules, allowing interchangeable use for seamless device upgrades and expansions. They are ideally suited for bandwidth-intensive applications such as data centres and network switches, delivering efficient and stable data transmission support.


    QSFP+ Optical Modules: Pioneering Ultra-High-Speed, High-Density Multi-Channel Solutions

    QSFP+ optical modules emerge as the preferred choice for ultra-high-speed networks through their exceptional transmission rates and high-density design. Supporting 40Gbps data transfer rates, they meet the most demanding application scenarios requiring rapid data movement. Their unique quad-channel architecture significantly increases port density within the same physical footprint, enabling more data transmission channels within constrained spaces. Furthermore, the QSFP+ optical module features low power consumption, contributing to reduced overall network equipment energy expenditure and lower operational costs. Simultaneously, it supports multiple fibre connectors and transmission protocols, offering high flexibility to adapt to diverse network environments and device requirements.


    QSFP28 Optical Module: The Benchmark for Ultimate Speed and High Performance

    The QSFP28 optical module holds a pivotal position in the high-end optical module market due to its unparalleled speed and exceptional performance. Supporting 100Gbps data transmission rates, it ranks among the most widely deployed high-end optical modules currently available. Its quad-channel architecture further enhances device port density, enabling greater data transmission capacity within the same spatial footprint. The QSFP28 module maintains excellent compatibility with QSFP+ modules, allowing interchangeable use for convenient device upgrades and expansions. It finds extensive application in data centres, cloud computing, and other scenarios demanding ultra-high-speed data transmission, providing robust support for efficient and stable information transfer.


    QSFP-DD Optical Module: Pioneer of Ultra-High Bandwidth and Advanced Design

    The QSFP-DD optical module stands as a premier solution in its field, offering both 200Gbps and 400Gbps variants to meet diverse high-speed networking demands. In channel architecture, the 200Gbps version employs 8 x 25Gbit/s channels, while the 400Gbps version utilises 8 x 50Gbit/s channels, enabling high-speed data transmission through efficient channel design. Within identical physical dimensions, it delivers superior port density and transmission rates, significantly enhancing equipment space utilisation and data throughput capabilities. Its advanced design is specifically engineered for data centres and high-performance computing environments, supporting elevated data rates and reduced latency to provide reliable assurance for these demanding data transmission scenarios.


    optical module pcb


    Optical Module PCB Design: Balancing Functionality and Challenges

    Functionally, the optical module PCB shoulders the critical task of efficiently converting electrical signals into optical signals, or accurately transforming optical signals back into electrical signals. It acts as a precision conversion facility, ensuring efficient, long-distance data transmission via fibre optics. Throughout this process, the design of the optical module PCB must comprehensively and meticulously consider multiple key factors. Signal integrity forms the foundation for accurate data transmission, as any distortion or interference may result in data errors or loss. Thermal management directly impacts the stability and lifespan of the optical module, as heat-generating components like lasers produce significant thermal energy during operation. Failure to dissipate this heat promptly and effectively will degrade module performance or cause damage. Electromagnetic compatibility (EMC) demands equal attention. Within complex electromagnetic environments, the optical module PCB must exhibit robust immunity to interference while preventing electromagnetic interference to other equipment. Only by holistically addressing these factors can one design optical module PCBs suited for high-speed (e.g., 400G/800G) and high-density data transmission environments.


    iPCB: Your Specialist Partner in Optical Module PCB Design

    Optical module PCB design constitutes a highly collaborative engineering endeavour, encompassing three critical aspects: materials, impedance, and thermal management. Material selection directly impacts PCB performance and reliability, as different materials exhibit distinct electrical, thermal, and mechanical properties requiring meticulous selection based on specific application requirements. Impedance design is crucial for ensuring signal integrity; improper impedance matching can cause signal reflection and attenuation, compromising data transmission quality. Thermal management requires the strategic layout of heat dissipation pathways within confined spaces, employing effective cooling measures to guarantee stable module operation under high-temperature conditions. Neglecting any of these aspects may lead to module performance failure, impacting the entire communication system's functionality.


    Leveraging extensive expertise and experience in high-frequency PCB design standards, iPCB serves as a professional enabler in optical module PCB design. We provide comprehensive technical consultation from substrate selection to laminate design, while proactively identifying and mitigating design risks through Design for Manufacturability (DFM) analysis. During the design process, we meticulously examine impedance traces to avoid issues such as sharp angles that may cause signal reflection. Simultaneously, we judiciously control via density to prevent excessive vias from compromising signal integrity. Should you encounter technical bottlenecks in optical module PCB design, consider contacting iPCB. Leveraging our expert team and advanced technology, we deliver bespoke professional solutions to accelerate your product's time-to-market and secure a competitive edge in the fiercely contested marketplace.


    Technical Challenges: The Demanding Tests of High Speed, Heat, and Precision

    From a technical perspective, optical module PCB design confronts numerous unique challenges. In high-speed signal processing, differential signal traces must be kept as short and wide as possible to minimise interference. This is because differential signals partially cancel out external interference during transmission; excessively long or narrow traces increase susceptibility to interference, degrading signal quality. Simultaneously, single-ended weak signals demand exceptionally precise impedance matching. Structures like vias can adversely affect signal integrity, necessitating meticulous impedance-matching design to mitigate such impacts and ensure flawless signal transmission.


    As the critical interface between optical module PCBs and external devices, gold-finger connectors demand near-absolute precision. To guarantee alignment accuracy and assembly reliability, precision drilling or CCD milling processes are employed. Precision drilling enables exact control over hole dimensions and positioning, guaranteeing accurate insertion of connector pins. CCD milling employs high-precision optical positioning systems to achieve precise machining of connectors, enhancing surface flatness and dimensional accuracy to ensure reliable connections during assembly.


    Thermal optimisation presents another significant challenge in optical module PCB design. Heat-generating components such as lasers produce substantial thermal energy during operation.Failure to dissipate this heat promptly and effectively leads to elevated temperatures within the optical module. Even minor temperature fluctuations can significantly impact module performance; for instance, a 1°C increase may cause 0.1dB optical power attenuation. Consequently, multiple cooling mechanisms—including PCB thermal conduction or external module casing cooling—are essential to rapidly dissipate heat, ensuring stable operating temperatures.


    In terms of component layout and signal management,optical module PCB design also requires meticulous planning. Isolated routing between transmitter and receiver effectively prevents signal interference, avoiding crosstalk where transmitted signals disrupt reception accuracy. Power traces necessitate separate handling for high-voltage sections, employing appropriate routing methods and isolation measures to ensure system safety and prevent high-voltage signals from interfering with or damaging other low-voltage components.


    In summary, optical module printed circuit boards (PCBs) play an irreplaceable role in optoelectronic signal conversion and communications. As technology advances, optical module PCB design will encounter both greater challenges and opportunities. iPCB remains committed to upholding a spirit of professionalism and innovation, continuously enhancing technical capabilities to deliver superior optical module PCB design solutions for our clients, thereby jointly advancing the development of the communications industry.

    Model: Optical Module Printed Circuit Board (PCB)


    Layers: 6 to 16 layers


    Materials: TG170, FR4, Polyimide, ITEQ IT968TC, Shengyi S1000-2M


    Structure: 2+4+2 High-Density Interconnect (HDI) PCB


    Final Thickness: 0.4 to 1.0 mm


    Copper Thickness: 1 to 2 ounces (OZ)


    Color Options: Green or White


    Surface Finish: Electroplated Hard Gold


    Special Feature: Beveled Gold Fingers


    Minimum Trace/Space: 3 mils / 3 mils


    Applications: Utilized in communication equipment, data centers, high-performance computing (HPC), and artificial intelligence (AI) to meet high-speed data transmission and computational power requirements.
