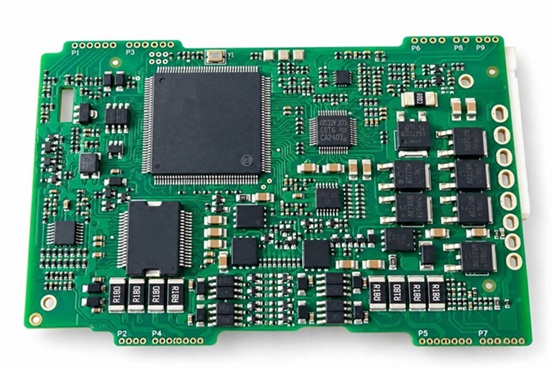

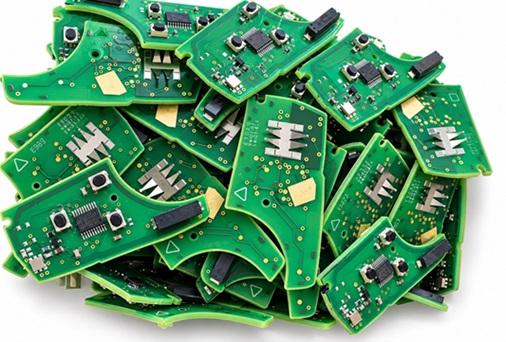

A printed circuit board automotive design has to do far more than route signals — it's the load-bearing foundation for every chip, sensor, and actuator in a vehicle's electronics. Many people assume PCBs are a low-complexity commodity, but an automotive-grade PCB carries a technical burden that consumer electronics never face: extreme operating conditions, zero tolerance for failure, a 15-year service life, and full safety traceability. Every stage — material selection, circuit design, manufacturing, and certification — runs to standards far stricter than anything in a phone or laptop.
For this reason, automotive PCB design and manufacturing must consider the complete product lifecycle, from material selection and stack-up design to fabrication, assembly, testing, and quality traceability. The challenge is not simply achieving finer lines or more PCB layers, but maintaining predictable electrical and mechanical performance under extreme conditions.
Automotive PCB vs. Consumer PCB
The gap isn't about layer count or trace precision — it's a fundamentally different design philosophy:
1. Temperature range: Consumer PCBs run 0–70°C indoors; automotive PCBs handle -40°C to 85°C in control modules, up to -40°C to 150°C in the engine bay.
2. Design lifespan: 2–5 years for consumer PCBs vs. 15 years / 200,000 km for automotive.
3. Quality standard: IPC Class 2 (minor defects tolerated) vs. IPC Class 3 (zero tolerance for deviation).
4. Environmental resistance: Static indoor use vs. constant vibration, salt spray, oil, and strong EMI.
5. Failure tolerance: Degraded experience vs. potential loss of power, braking failure, or fire risk for an automotive PCB.
6. Certification: Basic marks like RoHS vs. IATF16949, ISO16750, and AEC-Q200 — a 1–2 year cycle.
7. Design priority: Density/cost/speed vs. reliability and safety first.
8. Defect rate: Up to 500 DPPM tolerated vs. ≤1 DPPM for safety-critical modules — near-zero-defect production.
Four Core Technical Barriers
Material selection: Standard FR-4 (Tg ~130°C) delaminates and warps under rapid temperature swings. Automotive designs use tiered materials by location — high-Tg FR-4 (Tg≥150°C) for cabin electronics, flame-retardant FR-4 (Tg≥170°C, UL94 V-0) for chassis/body modules, and specialty high-temperature laminates (Tg 180–200°C, rated to 125°C) for engine-bay and powertrain modules. The hardest part is matching thermal expansion across substrate, copper, and component packages to prevent solder cracking after repeated cycling.
Environmental resilience: Constant vibration demands thicker copper, reinforced via walls, and fatigue-resistant solder joints. Salt spray, oil, and humidity call for ENIG or heavy nickel finishes, full solder-mask coverage, and conformal coating. Strong vehicle-wide EMI requires tight impedance control and complete ground/shield layers to keep safety and ADAS signals distortion-free.
Manufacturing precision: Automotive PCBs run to IPC Class 3, far tighter than consumer Class 2 — plated hole copper ≥25μm (vs. ≥20μm), trace tolerance within ±5% (vs. ±10%), zero exposed copper (vs. minor exposure tolerated), and warpage ≤0.5% (vs. ≤0.75%). The goal isn't maximum density — it's maximum controllability, trading density for copper thickness and insulation margin.
Electrical safety: New-energy vehicle PCBs carry both high-voltage power and low-voltage signal circuits on one board — 12V logic alongside 400V/800V rails, with expanded creepage distance to prevent arcing. Flame-retardant requirements go beyond basic UL94 V-0 to prevent smoldering after a short. High-speed Ethernet and radar signals need precise 50Ω/100Ω impedance matching that consumer designs never require.
Zone-Based Design Standards
Not every board on a vehicle is held to the same bar — standards scale with functional safety criticality: ADAS boards (radar, camera, domain controllers) need precise impedance matching and low-noise, symmetric multilayer routing, since signal distortion can cause misjudgment. High-voltage powertrain boards (BMS, motor controllers) need heavy copper and reinforced insulation given fire and power-loss risk. Chassis safety boards (ABS, ESP, steering) need vibration-resistant, sealed construction, since failure means loss of braking or steering control. Body-comfort boards (lighting, windows, HVAC) only need baseline automotive standards, since failures carry no direct safety risk.
The Hidden Barrier: Certification and Testing
The biggest barrier most people overlook is certification itself. IATF16949 governs full production traceability and defect closed-loop management — a mandatory gate for entering the automotive supply chain. ISO16750 simulates a vehicle's full 15-year lifecycle through thermal cycling, humidity aging, salt spray, and vibration testing. AEC-Q200 validates the reliability of passive components paired with the board. Automotive EMC testing covers radiated/conducted immunity, surge, and ESD protection. This full cycle can take months to a year, with a high failure rate — exactly why the automotive PCB supply chain stays concentrated among a small number of qualified manufacturers.
Why Are Automotive PCBs So Difficult?
The fundamental challenge is not that automotive PCBs always have narrower traces or more layers than consumer boards. In many cases, a consumer PCB may actually have greater routing density.
What makes automotive PCBs difficult is the combination of long service life, harsh environments, strict process control, high traceability, electrical safety, signal integrity, and low tolerance for field failures.
A successful automotive PCB therefore requires cooperation between material suppliers, PCB manufacturers, component suppliers, assembly houses, and automotive system engineers. Design decisions must be validated against manufacturing capability, environmental conditions, electrical requirements, and lifecycle reliability.
As vehicles become more electrified and software-defined, the role of the PCB continues to expand. From BMS and power electronics to radar, ADAS, Ethernet, and intelligent body control, the PCB is becoming an increasingly important part of the vehicle's electronic architecture.
In the end, printed circuit board automotive technology is not simply about making a board that works. It is about making an automotive PCB that continues to work reliably under heat, vibration, electrical stress, and years of real-world operation. Automotive PCB design, automotive PCB manufacturing, and high-reliability automotive PCB engineering are all part of the same reliability chain.
