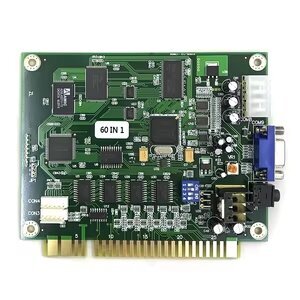

An arcade circuit board is, in essence, a printed circuit board (PCB) specifically designed for arcade machines. It connects all critical components—such as the Central Processing Unit (CPU), graphics and sound chips, input controls, and the power supply—enabling them to function in unison. Without this circuit board, the buttons you press and the images displayed on the screen would be unable to interact correctly.
Components of an Arcade Circuit Board
1. Substrate
The base material that provides mechanical support, typically a glass-fiber-reinforced epoxy resin (such as FR-4).
2. Conductive Layer
Composed of copper foil, this layer forms the traces (wires) and pads responsible for transmitting electrical signals.
In multi-layer boards, the conductive layers are categorized into signal layers, power layers, and ground layers.
3. Dielectric Layer
Also referred to as the substrate, this layer serves to insulate the conductive layers, ensuring that the various layers and traces do not interfere with one another.
The stacked structure of a multi-layer board consists of alternating layers of dielectric material and copper foil.
4. Solder Mask
A protective coating applied to the surface of the circuit board—typically green, though other colors exist—designed to shield the copper traces and prevent short circuits during the soldering process.
5. Silkscreen
Text and symbols printed atop the solder mask; these markings identify component locations, model numbers, orientations, and other information, thereby facilitating assembly and repair.
6. Surface Finish
A protective coating applied to the copper pads designated for soldering; it prevents oxidation and enhances the reliability of the solder joints.
Common surface finishes include Hot Air Solder Leveling (HASL), Electroless Nickel Immersion Gold (ENIG), and Immersion Silver.
Although home video game consoles and PC gaming have become the mainstream, arcade culture continues to persist with remarkable resilience.
Modern arcade circuit boards are no longer confined to traditional 2D pixel-based games; instead, they are evolving in the following directions:
1. Support for High-Definition (HD) displays (via HDMI, DisplayPort)
2. Network communication capabilities (for online multiplayer battles and updates)
3. Embedded operating systems (such as Linux or Windows Embedded)
4. Integrated designs featuring higher-performance multi-core CPUs and GPUs
Furthermore, the resurgence of the retro gaming market has driven demand for the restoration and reproduction of classic arcade PCBs. Many collectors and gaming enthusiasts purchase vintage PCBs to preserve them or modify them, thereby breathing new life into these timeless classics.
An arcade circuit board is far more than just a piece of electronic hardware; it embodies the entire history and collective memory of arcade culture. From early, simple logic circuits to modern, high-performance FPGA systems, arcade boards have consistently driven the advancement of gaming technology while providing players with an irreplaceable gaming experience. Whether you are a game developer, a collector, or an electronics engineer, understanding the structure, technology, and history of arcade circuit boards is an essential step toward gaining a deeper appreciation of arcade culture, fostering innovation, and preserving these timeless classics.
The true value of an arcade circuit board lies not merely in its ability to run games, but in its capacity to bridge the past and the future—allowing classic and modern gaming cultures to shine in mutual harmony. As technology continues to evolve, arcade circuit boards will undoubtedly discover new balances between innovation and retro appeal, continuing to unlock infinite possibilities for both players and developers alike.
